Wicked Edge WE120UP1

This is the Wicked Edge WE120UP1 – it is an upgrade kit which is only compatible with the 2017 Wicked Edge WE100 sharpener and 2017 Wicked Edge Pro-Pack 1.

These Ball-Joints have broached, threaded studs which fit a ⅛” Allen Wrench. Use an Allen wrench to thread the Ball-Joints closer to or farther from the sharpener’s Vise to make micro-angle adjustments. Then use the knurled jam-nut to lock the angle in place.

• The 11″ Degree Bar and Riser Block will extend the angle range to 13-35°per side (26-70° inclusive)

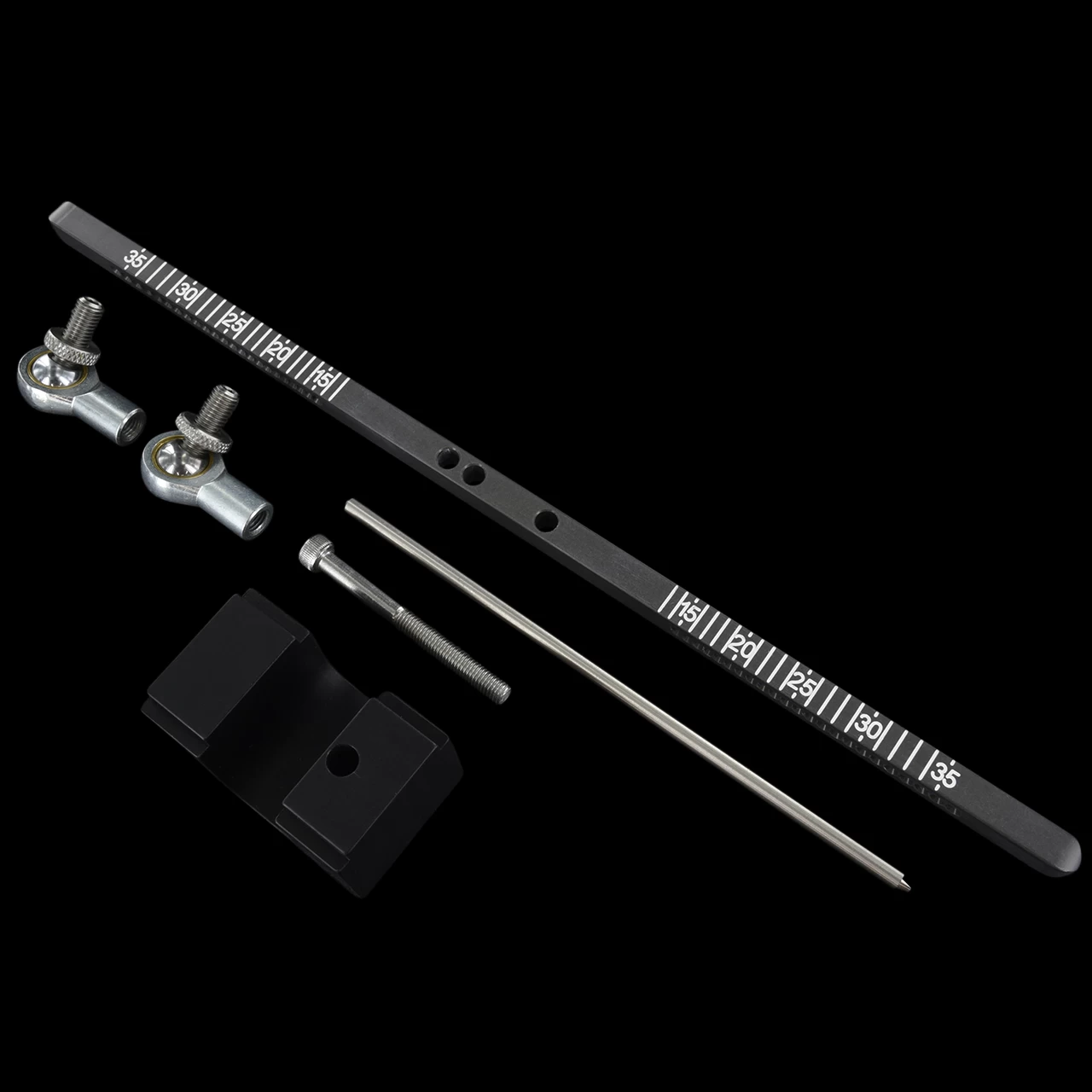

• Included parts:
• 11″ Degree Bar
• Riser Block
• Ball-Joint with Broached Stud (2ea)
• Knurled Jam-Nut (2ea)
• 5⁵/₈” Knife Brace
